Webhook adapters

Prometheus Alertmanager

Send Alertmanager groups to WarnFire, page once per problem, and close incidents automatically when the group recovers.

WarnFire accepts Prometheus Alertmanager webhook notifications. A firing group opens an incident and starts its escalation policy. Updates to that group update the same incident. When the group resolves, WarnFire closes it.

Alerts, not logs or metrics. WarnFire receives notifications from Alertmanager. It does not scrape Prometheus, query dashboards, or ingest application logs through this adapter.

The configuration and lifecycle on this page are tested end to end with a real Alertmanager v0.28.0 sender.

Before you begin

You need:

• a WarnFire service and integration key for this Alertmanager installation. If you do not have one, create the service and its first key ;
• access to the Alertmanager configuration and secret files; and
• permission to validate and reload Alertmanager.

Create a separate WarnFire service and key for each monitoring tool. A service named Checkout (Alertmanager) is immediately distinguishable from Checkout (Grafana) when you are responding at 3am.

Five-minute setup

1. Store the integration key

Put only the key in a file readable by Alertmanager:

install -d -m 700 /etc/alertmanager/secrets
printf '%s' 'wf_live_your_integration_key_here' > /etc/alertmanager/secrets/warnfire-key
chmod 600 /etc/alertmanager/secrets/warnfire-key

Do not put the key in the webhook URL or commit it with the Alertmanager configuration.

If Alertmanager runs in Docker, mount the containing directory rather than the individual file:

volumes:
  - ./secrets:/etc/alertmanager/secrets:ro

Creating a missing file through a Docker bind mount can produce a root-owned directory with the same name. Mounting the containing directory makes a missing key fail clearly.

2. Add the WarnFire receiver

route:
  receiver: warnfire
  group_by: [service]
  group_wait: 10s
  group_interval: 30s
  repeat_interval: 1h

receivers:
  - name: warnfire
    webhook_configs:
      - url: https://api.warnfire.com/v1/integrations/webhooks/alertmanager
        send_resolved: true
        http_config:
          authorization:
            type: Bearer
            credentials_file: /etc/alertmanager/secrets/warnfire-key

Alertmanager’s webhook receiver currently defaults send_resolved to true. Keep it explicit: an inherited or copied false leaves incidents open after the monitoring condition clears.

Alertmanager does not expand shell environment variables in this YAML. Write the WarnFire URL literally or render the configuration before Alertmanager reads it.

3. Validate and reload

amtool check-config /etc/alertmanager/alertmanager.yml
kill -HUP "$(pidof alertmanager)"

For Docker Compose, use docker compose restart alertmanager if you do not send SIGHUP inside the container.

Decide what one incident means

Alertmanager sends a notification group, not a stream of unrelated individual webhooks. WarnFire correlates that group using Alertmanager’s groupKey:

Alertmanager member alerts → one Alertmanager group → one WarnFire incident

Your group_by labels determine the group and therefore the incident boundary.

route:
  group_by: [service, environment]

Choose labels that name the thing responders handle together:

Grouping by alertname is appropriate only when every alert rule truly deserves a separate response. Otherwise one outage that triggers latency, error-rate, and health-check rules becomes three incidents and three pages.

Put every grouping label on every relevant rule. A checkout rule without service: checkout cannot join the checkout group.

groups:
  - name: checkout
    rules:
      - alert: CheckoutHighErrorRate
        expr: rate(http_requests_total{service="checkout",status=~"5.."}[5m]) > 0.05
        for: 2m
        labels:
          service: checkout
          environment: production
          severity: critical
          component: checkout-api
        annotations:
          summary: Checkout is failing
          description: More than 5% of checkout requests are failing.
          runbook_url: https://runbooks.example.com/checkout

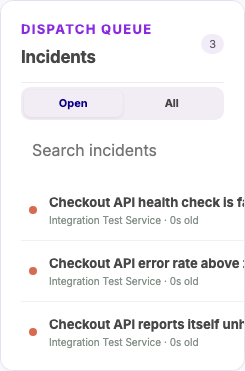

Grouping by alertname: three symptoms become three incidents.

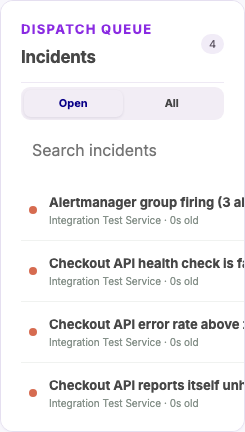

After switching to group_by: [service], one fresh notification creates one incident for all three alerts. The three earlier alertname test incidents remain below it because grouping changes do not merge incidents that already exist.

What happens during a group lifecycle

Suppose a service group contains a critical error-rate alert and two warning alerts:

Acknowledging the incident is a human-response action. It does not acknowledge or resolve Alertmanager’s member alerts. Alertmanager remains the source of truth for whether its alerts are firing or resolved.

WarnFire changes only fingerprints that Alertmanager explicitly includes in a webhook. A fingerprint missing from a delivery is not assumed resolved, even when truncatedAlerts is zero: webhook payload v4 has no delivery timestamp or completeness guarantee. Keep send_resolved: true so each member recovery is delivered explicitly. This safety rule can leave an incident open when a resolution delivery is permanently lost; an authorized operator can use Force resolve with a recorded reason.

After force resolution, the first subsequent firing receipt creates a successor incident. Alertmanager’s unchanged scheduled repeat and a delayed retry have the same deterministic identity and cannot be distinguished, so WarnFire safely reopens on that first receipt. Further identical retries deduplicate into the successor normally.

Severity

WarnFire uses the highest recognized severity among the members currently firing:

critical > error > warning > info

warn is accepted as warning. Unknown values such as P1, sev1, and page remain in the recorded labels but do not outrank a recognized severity. If no firing member carries a recognized value, WarnFire falls back to the group’s shared severity and then to error.

Severity is recalculated only when Alertmanager sends a notification. If a critical member recovers while warnings remain, the incident becomes warning after the changed group is delivered. It does not wait for the whole group to resolve.

Delivery timing

Three route timers determine when notifications arrive:

The alert rule’s for: duration happens before these timers. A rule with for: 5m must remain active for five minutes before Alertmanager sees it as firing.

For testing, group_wait: 10s and group_interval: 30s keep the lifecycle visible without hiding changes for five minutes. Choose production values based on how quickly responders need member changes and how much notification traffic you can tolerate. Keep repeat_interval a multiple of group_interval; Alertmanager evaluates repeats on group-interval boundaries.

resolve_timeout is different. It applies when a sender does not provide EndsAt. Prometheus alerts do provide EndsAt, so changing resolve_timeout does not control ordinary Prometheus recovery timing.

See the official Alertmanager configuration reference for current defaults and complete timer semantics.

Truncated groups and max_alerts

Alertmanager’s webhook max_alerts option limits how many members appear in one delivery. The payload reports omitted members through truncatedAlerts.

A truncated delivery is not a complete picture of the group. WarnFire records the truncation count, but you should not use a low max_alerts and then expect omitted-member details or severity changes to be exact. Alertmanager omission never implies member recovery—even for a non-truncated delivery—so WarnFire changes only members Alertmanager actually delivered.

Prefer the default max_alerts: 0 unless you have measured a delivery-size problem. If you must cap it, choose a value larger than the largest group you expect and monitor truncatedAlerts.

What WarnFire records

Shared fields are values Alertmanager places in commonLabels or commonAnnotations because every member agrees on them. Put a service-level summary or runbook on every rule in the group if you want it to survive as a shared incident field.

Open the incident’s Events tab to inspect each delivered group update and its recorded payload.

Verify it worked

Do not treat a quiet Alertmanager log as proof of delivery. Walk the chain:

curl -fsS localhost:9090/api/v1/targets  # Prometheus can scrape the target
curl -fsS localhost:9090/api/v1/rules    # the rule is loaded
curl -fsS localhost:9090/api/v1/alerts   # Prometheus sees it firing
curl -fsS localhost:9093/api/v2/alerts   # Alertmanager received it

Then confirm WarnFire opened the expected incident. Recover the monitored condition and confirm that the same incident resolves.

Test all three meaningful phases:

1. Several related members fire in one group.
2. One member resolves while another remains firing.
3. The final member resolves.

That catches grouping, partial recovery, severity reduction, final correlation, and send_resolved behavior. A trigger-only test does not prove recovery works.

Use Services → Provider webhook adapters → alertmanager to preview a real payload without paging. Preview maps the action, title, severity, correlation key, and metadata; it does not select or verify a service. Choose the intended service before using Send test.

Send test and a delivery from Alertmanager use the normal incident and escalation path. They can page real responders. Selected SMS and voice channels consume allowance or prepaid credits for every destination contacted and can invoke configured auto-recharge. Notify the responder and use a dedicated test service when practical.

Troubleshooting

Several incidents open for one outage

Inspect group_by. Grouping by alertname creates one group—and therefore one WarnFire incident—per symptom. Group by the service, environment, cluster, or other unit responders handle together.

The first incident is slow to appear

Add the alert rule’s for: duration and Alertmanager’s group_wait. Verify the rule and alert through the Prometheus and Alertmanager APIs above.

A member change looks delayed

Alertmanager sends changed existing groups on group_interval boundaries. Its default is five minutes.

Incidents do not close

Confirm the receiver has send_resolved: true, reload Alertmanager, and verify the resolved notification leaves Alertmanager. Although the webhook default is currently true, an explicit false can be inherited from copied configuration.

The integration key cannot be read

Confirm the credentials file exists before the container starts, is a regular file rather than a directory, and is readable by the Alertmanager process. Mount its containing directory in Docker.

Incident links point to container names

Start Prometheus and Alertmanager with externally reachable addresses:

--web.external-url=https://prometheus.example.com
--web.external-url=https://alertmanager.example.com

HTTP errors from WarnFire

Alertmanager retries failed webhook notifications. Fix the cause and confirm the expected incident state rather than assuming a quiet log means the retry succeeded.

Next steps

Review how Alertmanager grouping defines an incident , then use Test before you connect to preview representative groups before changing grouping or routing in production.
